Beams
Explore our wide range of structural glulam timber beam, rafter and lintel options.
Size

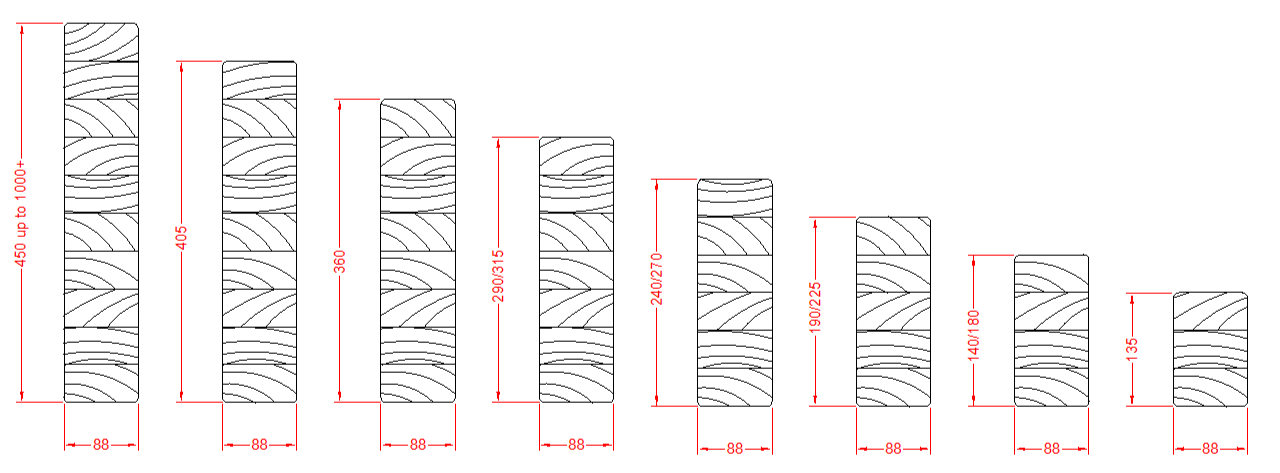

Standard Depths: 135, 140, 180, 190, 225, 240, 270, 290, 315, 360, 405, 450, 495, 540, 585 then increasing in 45mm increments up to 1000+mm
Standard Widths:
42, 63, 88, 112, 135, 180, 225, 270
Non-visual beams can be finished at 45, 65, 90, 115, 140, 190 if requested
Widths greater than 270mm available on request
Lengths: 1m up to 20m in 100mm increments
Non-Standard Sizes: We can finish to any size required. Select the next larger size which will be machined down to your specification.
Smart ordering: No waste. No extra cost.
Why pay for offcuts you’ll just throw away?
Unlike standard suppliers, we manufacture and supply our glulam beams in 100mm increments.
Order exactly what your project plans require and pay only for the timber you need.
Treatment
Options: Untreated (UT), H1.2, H3.2, H5
CCA is standard for H3.2 & H5. MCA on request, and may have longer lead time.
Appearance / Finish

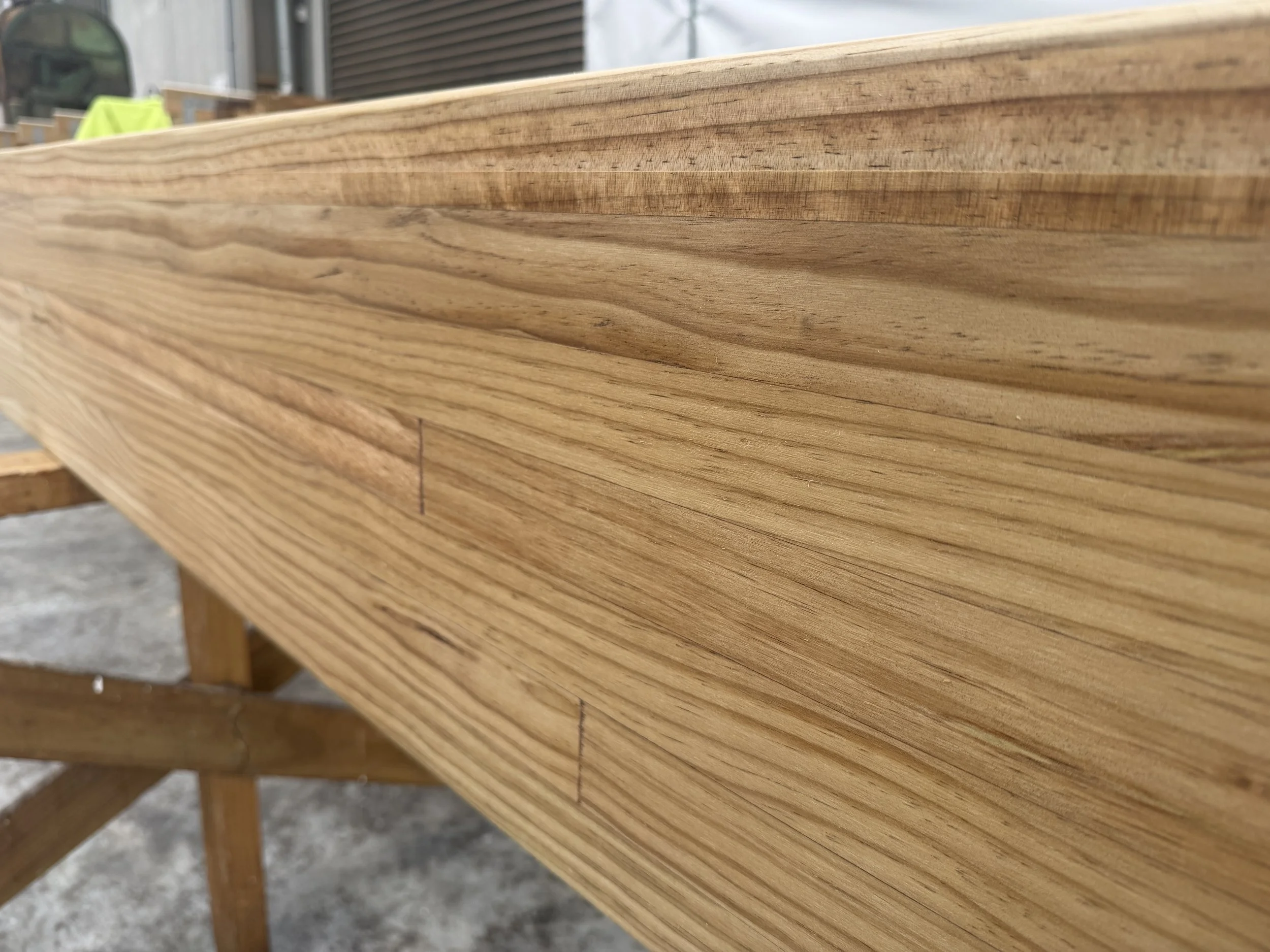

Appearance: Visual, Non-visual
Finish: Sanded, Machined only (D4S), Bandsawn
Find details in the Appearance / Finish section
Strength Grade
Options: Non-structural, GL8, GL10*, GL12
*Accoya is GL10 only
All beams are manufactured straight unless a camber is specified when ordering.
Find details in the Technical section
Timber
Options: Pine, Accoya, Totara. Enquire for other timber species available.
Find details in the Timber section
